Fabrication method of wall mounted charging pile for new energy vehicles


Fabrication method of wall mounted charging pile for new energy vehicles

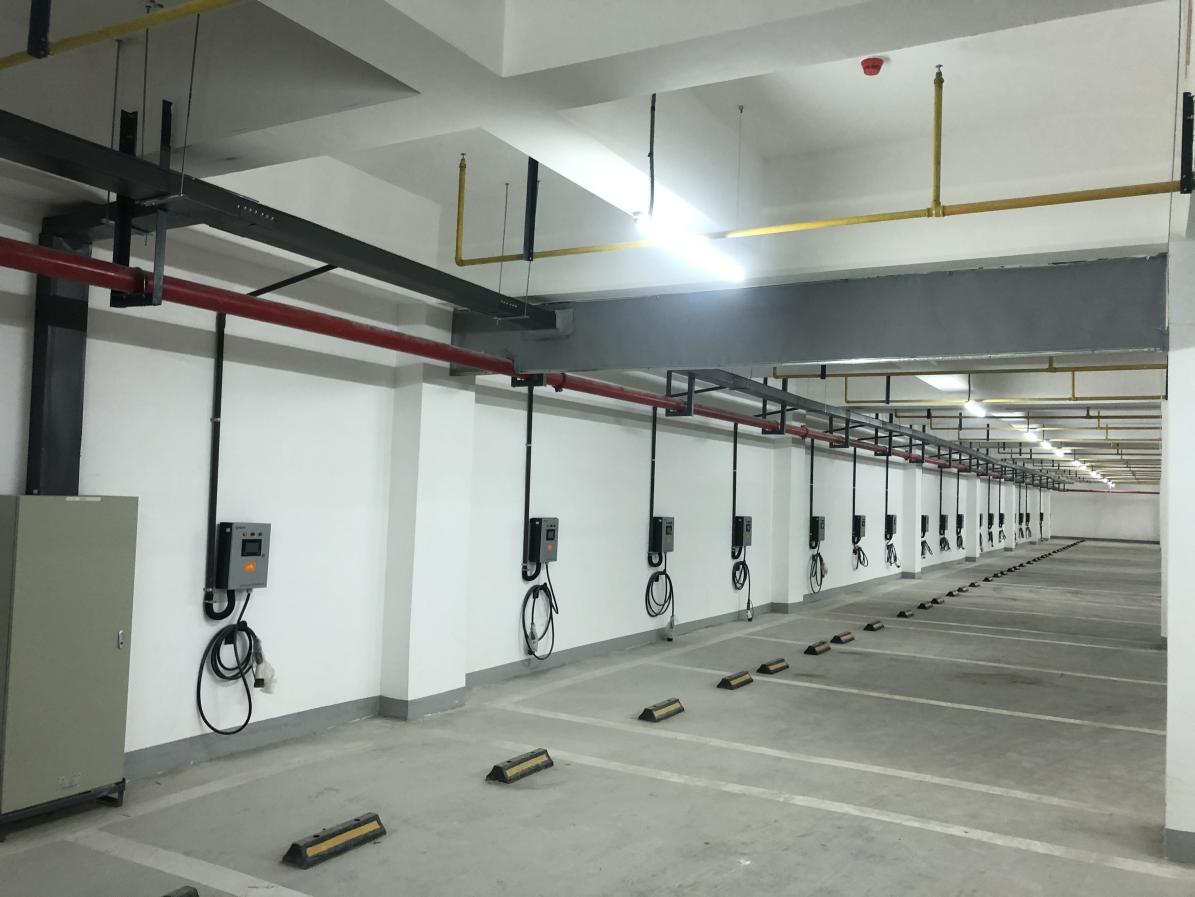

1.The role of the charging pile is similar to that of the fuel dispenser in the gas station.It can be fixed on the ground or wall,installed in public buildings and residential parking lots or charging stations,and can charge various electric vehicles according to different voltage levels.



Eurasia



2.Wall mounted charging pile is one of many charging piles.The advantage of wall mounted charging pile is to save space.In the existing technology,most traditional wall mounted charging piles are directly fixed on the wall with bolts,but this fixing method requires that the bolts be tightened during disassembly,which will cause the bolts to slip and affect the fixation.

Technical implementation elements:

1.The purpose of the utility model is to solve the shortcomings of the existing technology,and to propose a wall mounted charging pile for new energy vehicles.By setting a fixing mechanism,direct bolt fixing is avoided.It causes the bolt to slip and affects the fixation of the vehicle body.The joint can be stored by setting the lifting mechanism.When the connector is not used,it will shrink into the body to prevent dust and rain from polluting the connector and causing damage to the connector.

2.To achieve the above purposes,the utility model adopts the following technical solutions:

3.The utility model relates to a wall mounted charging pile for a new energy vehicle,which comprises a connecting plate and a body arranged on the wall.The connecting plate is provided with a fixing mechanism for fixing the body,and the fixing mechanism comprises a fixing mechanism for fixing the connection to the rear of the body.For the T-shaped block on the wall,the connecting plate is provided with a T-shaped groove matching the T-shaped block.The T-shaped block is connected in the T-shaped groove in a sliding way.The lower end of the body is provided with a plurality of through holes,which are connected with the joints in a sliding way.The body is provided with a moving plate.The upper end of a plurality of joints is installed at the lower end of the moving plate,and the body is provided with a lift joint.

4.The lifting mechanism comprises a power motor,which is fixedly connected to the top of the body,the output shaft end of the power motor is fixedly connected with the screw,and the lower end of the screw can rotate.Connect to the body's insole.A screw rod passes through and is connected with the movable plate thread.

5.A limit bar is fixedly connected between the inner bottom and the inner top of the body,and the limit bar passes through the moving plate and is slidably connected with it.

6.The upper end of the body is fixedly connected with two symmetrically arranged vertical rods,and the upper end of the two vertical rods is fixedly connected with a waterproof roof.

7.The display screen is installed on the front wall of the machine body,and the keyboard is also installed on the front wall of the machine body.

8.The connecting plate is fixedly connected with the wall by a plurality of bolts,which are arranged in a rectangle.

9.Compared with the prior art,the invention has the following beneficial effects:

10.By setting a fixing mechanism,the connecting plate is fixed on the wall in advance,the T-shaped block at the back side of the machine body slides into the T-shaped slot on the connecting plate,and the machine body slides out during disassembly.Avoid direct fixation with bolts.The removal process is complicated,and it is easy to cause the bolts to slip,which affects the fixation of the vehicle body.

11.The lifting mechanism is set to drive the output shaft of the power motor to rotate,drive the screw rod to rotate,drive the moving plate connected to it to move,and pull up the connector.When charging is not required,the connector will shrink into the body to avoid dust and rain.Contaminate the connector,causing damage to the connector.



Wall mounted charging pile,parking lot,charging station
